| Description | Handle Part No. For Rotary Slips | Handle Part No. For Drill Collar Slips | Handle Part No. For Casing Slips |
|---|---|---|---|
| Handle for Segment-Right End | 5110F-U | 5217F (R) | 5321F (R) |
| Handle for Segment-Left End | 5112F | 5217F (L) | 5321F (L) |
| Handle for Segment-Intermediate | 5111F | 5218F | 5322F |
Related Products
Hinged Casing Spider
The Arabian Drilling Tools Hinged Casing Spider is engineered to provide safe, reliable, and efficient casing handling on the rig floor. Its hinged structure makes it highly effective when cementing equipment or casing cannot pass through a closed spider or rotary table, ensuring operations continue smoothly without interruption. In addition, the design helps reduce stress on rotary table bearings by eliminating the need to place heavy casing string loads directly on them, thereby extending equipment service life.
Made for durability and strength, the Hinged Casing Spider is manufactured from high-quality materials and precision engineering to withstand demanding drilling conditions. Available in 500 ton, 200 ton, 150 ton, and 100 ton capacities, it offers flexibility for different well requirements. Each model delivers a secure grip on casing and distributes weight evenly, maximizing safety and efficiency in heavy-duty operations.
With its robust build and field-proven design, the Arabian Drilling Tools Hinged Casing Spider is a dependable choice for drilling contractors. It enhances rig safety, minimizes downtime, and ensures smooth casing operations across diverse drilling applications.
Lifting Slings
Arabian Drilling Tools Lifting slings are crafted from high-grade, heat-treated alloy steel, ensuring exceptional strength and reliability for both overhead lifting and tie-down applications. Each sling is meticulously designed to meet stringent safety standards and to withstand the rigorous demands of the oil and gas industry.
Our range of lifting slings includes specialized designs tailored to specific equipment needs:
- Heavy Duty Four Hooks Lifting Sling for Master Bushing 37.1/2”: This robust sling is engineered for secure lifting and handling of heavy equipment, providing optimal support during operations involving the Master Bushing.
- Four Hooks Lifting Sling for Kelly Bushing & Power Slips: Designed for versatility, this sling facilitates efficient lifting and maneuvering of equipment such as the Kelly Bushing and Power Slips, ensuring safe and effective handling.
- Two Hooks Lifting Sling for Bowl & Master Bushing 27.1/2”: Ideal for smaller-diameter applications, this sling offers reliable lifting capability for equipment associated with Bowl and Master Bushing operations, ensuring stability and safety during handling.
Arabian Drilling Tools prioritizes precision engineering and adherence to industry standards, ensuring that each lifting sling meets the highest quality and safety criteria essential for demanding drilling environments.

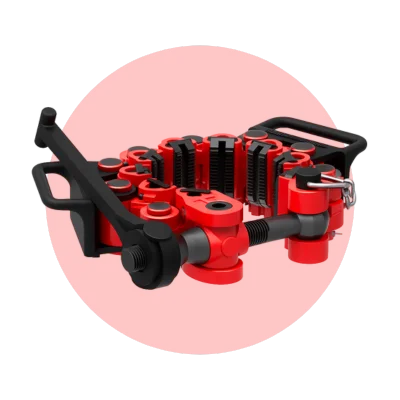

Type C Safety Clamps
Arabian Drilling Tools manufactures Type C Safety Clamps, which are vital tools for ensuring rig floor safety and secure casing operations. These clamps are primarily used to prevent the accidental dropping of flush joint pipe, drill collars, fishing tools, gravel pack liners, and wash pipe.
The Type C Safety Clamp features a tapered gripping system, where each link is fitted with a spring-loaded insert that acts as an independent gripping element. This wedge-style design ensures that the clamp tightens more firmly as the pull increases, preventing slippage and providing consistent control over the tubular. The interconnected links apply uniform gripping pressure around the pipe, reducing the risk of deformation or crushing, especially on thinner-walled tubulars.
For additional functionality, when equipped with hold-down ears and inverted, the Type C Clamp can also be used as a hold-down device to counter surface pipe flotation during cementing operations.
It is important to note that Type C Safety Clamps are not designed to support the entire string weight and must always be used in combination with slips. For enhanced stability during operations, the Type CL model is available with a double screw arrangement.
Wear Guide Assembly
Arabian Drilling Tools specializes in manufacturing Wear Guide Assemblies meticulously designed to minimize wear within Master Bushing Insert Bowls during drilling operations. These assemblies feature high-quality Wear Guide Inserts crafted from robust materials that effectively mitigate wear and tear on tubulars, ensuring prolonged operational efficiency and reliability.
They are specifically engineered to seamlessly mount into the pin drive locations of 27.1/2″ and 37.1/2″ Master Bushings. Additionally, our range includes expendable Wear Guide Adapter Plate Rings tailored for pipe sizes ranging from 3.1/2″ to 5″ and 5.1/2″ to 6.5/8″, providing comprehensive solutions to enhance drilling performance and longevity.
Slip Lifter
Arabian Drilling Tools manufactures the Slip Lifter, also known as the Backsaver, a sophisticated power tool designed to enhance safety and efficiency on drilling sites. This tool is pneumatically or hydraulically operated and is used to lift slips, significantly reducing personnel fatigue and the risk of injuries.
The Slip Lifter allows for remote operation from the driller’s cabin or standalone control panels, ensuring that slips are handled with precision and care. By properly setting and raising slips, the Slip Lifter also extends the life of both slips and inserts, minimizing wear and tear and ensuring optimal performance over time.
The innovative design of the Slip Lifter reflects our commitment to safety and operational efficiency, making it an essential tool for modern drilling operations. Arabian Drilling Tools is dedicated to providing top-quality equipment that meets the demanding needs of the drilling industry.
