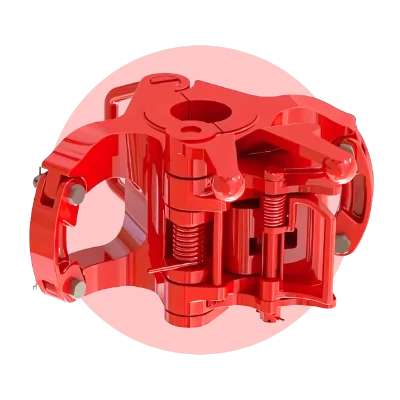

G Center Latch 18° Drill Pipe Elevator
Product Quote Request
Please fill form to contact us
Arabian Drilling Tools manufactures the G Center Latch 18° Drill Pipe Elevator, designed for the safe and efficient handling of drill pipes during drilling operations. With its 18° center latch design, this elevator ensures quick, secure engagement with drill pipes, minimizing handling time and enhancing rig floor efficiency.
Built from high-strength alloy steel, the G Center Latch 18° Drill Pipe Elevator undergoes heat treatment, load testing, and magnetic particle inspection to ensure durability and safety under demanding drilling conditions. Its robust construction provides excellent load-bearing capacity while maintaining operational reliability.
Available in multiple sizes to suit various drill pipe diameters, the G Center Latch 18° Elevator meets API 8C specifications, delivering dependable performance, long service life, and safety assurance in oilfield applications.
At Arabian Drilling Tools, we focus on providing the G Center Latch 18° Drill Pipe Elevator, which combines precision, strength, and reliability for seamless drilling operations.
G Center Latch 18° Drill Pipe Elevator
Part Number & Sizes
Part No. | Type | Tons | Size Range | Size of Links | Weight | |
|---|---|---|---|---|---|---|
| 66101 | MG | 100 | 2.3/8″ – 5″ | 1.3/4″ – 2.3/4″ | 235 | |
| 66102 | RG | 150 | 2.3/8″ – 3.1/2″ | 1.3/4″ – 2.3/4″ | 330 | |
| 66103 | RG | 150 | 4″ – 5.1/2″ | 1.3/4″ – 2.3/4″ | 430 | |
| 66104 | MGG | 175 | 2.7/8″ – 5″ | 1 3/4″ – 2 3/4″ | 520 | |
| 66105 | MGG | 250 | 2.7/8″ – 5.1/2″ | 2.1/4″ – 3.1/2″ | 571 | |
| 66106 | GG | 350 | 4″ – 5.7/8″ | 2.1/4″ – 3.1/2″ | 734 | |
| 66107 | HGG | 500 | 4″ – 6.5/8″ | 2.1/4″ – 3.1/2″ | 980 | |
Related Products
Side Door 90° Elevator – SLX & SX
Arabian Drilling Tools manufactures a range of Side Door 90° Elevators (SLX & SX) designed for safe and efficient handling of tubulars. These elevators are built with a 90° side-opening door, allowing quick and easy latching or unlatching of drill pipes and casing.
The robust construction ensures maximum load-bearing capacity, making them suitable for demanding drilling operations. The 90° side-door design provides smooth handling while minimizing the risk of accidents during pipe operations.
Available in multiple sizes, Arabian Drilling Tools Side Door Elevators are designed to accommodate various tubular diameters, ensuring flexibility across a range of drilling applications. Each elevator is made from high-grade alloy steel, load tested, and magnetic particle inspected to ensure superior strength and durability.
Certified to API-8C, these elevators guarantee reliable performance and meet the highest safety standards in the oilfield industry.
At Arabian Drilling Tools, we are committed to delivering elevators that combine durability, precision, and operator safety, making the Side Door 90° SLX & SX Elevators a trusted choice for drilling operations worldwide.

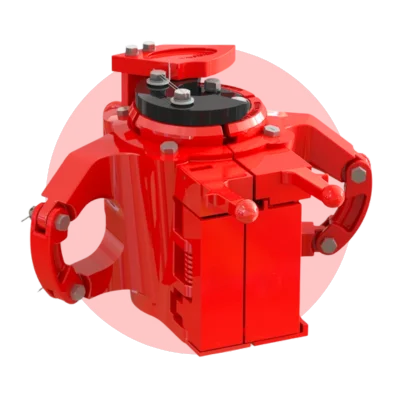

Slip Type Elevator – HYC
Arabian Drilling Tools manufactures the Slip Type Elevator – HYC, designed for safe and efficient handling of drill pipe and casing in oilfield operations. The Slip Type Elevator – HYC features a slip-type gripping mechanism, ensuring a firm hold on tubulars while minimizing the risk of slippage and damage.
Constructed from premium alloy steel, each elevator is heat-treated, load-tested, and inspected through magnetic particle testing for superior strength and safety. With a robust design, the Slip Type Elevator – HYC allows quick and reliable operation on the rig floor, improving handling efficiency.
Available in multiple sizes and load capacities, the Slip Type Elevator – HYC is manufactured to comply with API 8C specifications, ensuring dependable performance in demanding drilling environments.
At Arabian Drilling Tools, our Slip Type Elevator – HYC deliver durability, reliability, and maximum safety for drilling and casing operations.

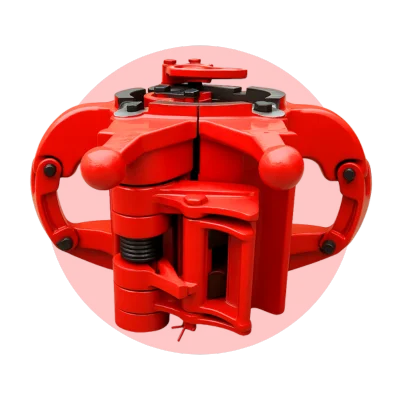

Slip Type Elevator – YC and MYC
Arabian Drilling Tools manufactures the Slip Type Elevator – YC and MYC, designed for safe and efficient handling of drill pipe and casing during drilling operations. Slip Type Elevator – YC and MYC are widely used on the rig floor for their ability to provide a secure grip and reliable lifting performance.
Built from high-quality alloy steel, Slip Type Elevator – YC and MYC are heat-treated, load-tested, and inspected with magnetic particle testing to ensure strength, durability, and safety. Their slip-type design ensures full contact with the pipe body, reducing the risk of damage while maximizing holding capacity.
Available in various sizes and load ratings, these elevators meet API 8C specifications, ensuring compliance with international standards. Easy to operate and maintain, YC and MYC Slip-Type Elevators are trusted for their dependable performance in demanding drilling environments.
At Arabian Drilling Tools, we focus on delivering elevators that combine safety, strength, and long service life for critical oilfield applications.
Sucker Rod Type Elevator
Arabian Drilling Tools manufactures the Sucker Rod Type Elevator, designed for safe and efficient handling of sucker rods during oilfield operations. Sucker Rod Type Elevators are widely used in workover rigs and well servicing applications, where durability and reliability are critical.
Built from premium-grade alloy steel, the Sucker Rod Elevator is heat-treated, load-tested, and inspected using magnetic particle methods to ensure maximum strength and safety. The simple yet robust design allows operators to quickly latch and unlatch sucker rods, reducing rig floor handling time and improving efficiency.
Available in various sizes to accommodate different sucker rod diameters, these elevators are engineered to meet API 8C specifications and ensure dependable performance in demanding field conditions.
At Arabian Drilling Tools, our Sucker Rod Elevators deliver long service life, superior load capacity, and reliable safety for your well servicing needs.

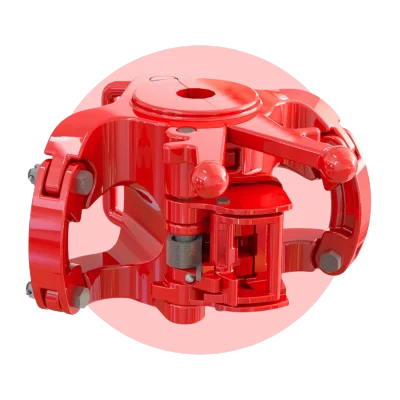

TA Center Latch 90° Collar Type Elevator
