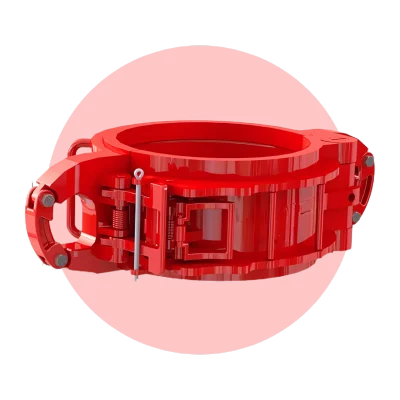

Side Door 90° Elevator – SLX & SX
Product Quote Request
Please fill form to contact us
Arabian Drilling Tools manufactures a range of Side Door 90° Elevators (SLX & SX) designed for safe and efficient handling of tubulars. These elevators are built with a 90° side-opening door, allowing quick and easy latching or unlatching of drill pipes and casing.
The robust construction ensures maximum load-bearing capacity, making them suitable for demanding drilling operations. The 90° side-door design provides smooth handling while minimizing the risk of accidents during pipe operations.
Available in multiple sizes, Arabian Drilling Tools Side Door Elevators are designed to accommodate various tubular diameters, ensuring flexibility across a range of drilling applications. Each elevator is made from high-grade alloy steel, load tested, and magnetic particle inspected to ensure superior strength and durability.
Certified to API-8C, these elevators guarantee reliable performance and meet the highest safety standards in the oilfield industry.
At Arabian Drilling Tools, we are committed to delivering elevators that combine durability, precision, and operator safety, making the Side Door 90° SLX & SX Elevators a trusted choice for drilling operations worldwide.
Side Door 90° Elevator – SLX & SX
Part Number & Sizes
Part No. | Type | Tons | Size Range | Size of Links | Weight | |
|---|---|---|---|---|---|---|
| 55101 | SLX | 100 | 2.3/8″ – 5.1/2″ | 2.3/8″ – 5.1/2″ | 175 | |
| 55102 | SLX | 150 | 3.1/2″ – 8.5/8″ | 1.3/4″ – 3.1/2″ | 340 | |
| 55103 | SLX | 150 | 9.1/2″ – 10.3/4″ | 1.3/4″ – 3.1/2″ | 420 | |
| 55104 | SLX | 150 | 11.3/4″ – 13.3/8″ | 1.3/4″ – 3.1/2″ | 460 | |
55105 | SLX | 150 | 16″ – 20″ | 1.3/4″ – 3.1/2″ | 764 | |
55106 | SLX | 150 | 24″ – 30″ | 1.3/4″ – 3.1/2″ | 1276 | |
| 55107 | SLX | 150 | 36″ | 1.3/4″ – 3.1/2″ | 2100 | |
55108 | SLX | 250 | 4.1/2″ – 8.5/8″ | 1.3/4″ – 3.1/2″ | 500 | |
| 55109 | SLX | 250 | 9.5/8″ – 10.3/4″ | 1.3/4″ – 3.1/2″ | 650 | |
55110 | SLX | 250 | 11.3/4″ – 14″ | 1.3/4″ – 3.1/2″ | 525 | |
| 55111 | SLX | 250 | 16″ – 24″ | 1.3/4″ – 3.1/2″ | 1000 | |
| 55112 | SLX | 250 | 24″ – 30″ | 1.3/4″ – 3.1/2″ | 1635 | |
| 55113 | SLX | 250 | 36″ | 1.3/4″ – 3.1/2″ | 2200 | |
| 55201 | SX | 350 | 5.1/2″ – 13.3/8″ | 2.1/4″ – 3.1/2″ | 1076 | |
| 55202 | SX | 350 | 16″ – 20″ | 2.1/4″ – 3.1/2″ | 1280 | |
55203 | SX | 500 | 6.5/8″ -13.3/8″ | 2.3/4″ – 3.1/2″ | 1180 | |
| 55204 | SX | 500 | 16″ – 20″ | 2.3/4″ – 3.1/2″ | 1346 | |
| 55205 | SX | 750 | 7.5/8″ – 13.3/8″ | 3.1/2″ – 4.3/4″ | 2650 | |
Related Products
Center Latch 90° Collar Type Elevator
Arabian Drilling Tools manufactures the Center Latch 90° Collar Type Elevator, designed for safe and efficient handling of casing, tubing, and drill collars. Its Center Latch 90° Collar Type Elevator mechanism provides a secure grip and balanced load distribution, ensuring smooth lifting operations on the rig floor.
Built from high-strength alloy steel, Center Latch 90° Collar Type Elevator are heat-treated, load-tested, and magnetic particle inspected for maximum durability and safety. The robust latch design minimizes risks of accidental opening while providing dependable performance in demanding drilling environments.
Available in various sizes and capacities, the Center Latch 90° Collar Type Elevator complies with API 8C specifications, making it a reliable choice for critical oilfield operations.
At Arabian Drilling Tools, our Center Latch 90° Collar Type Elevator deliver long service life, superior load capacity, and trusted performance across global drilling applications.
G Center Latch 18° Drill Pipe Elevator
Arabian Drilling Tools manufactures the G Center Latch 18° Drill Pipe Elevator, designed for the safe and efficient handling of drill pipes during drilling operations. With its 18° center latch design, this elevator ensures quick, secure engagement with drill pipes, minimizing handling time and enhancing rig floor efficiency.
Built from high-strength alloy steel, the G Center Latch 18° Drill Pipe Elevator undergoes heat treatment, load testing, and magnetic particle inspection to ensure durability and safety under demanding drilling conditions. Its robust construction provides excellent load-bearing capacity while maintaining operational reliability.
Available in multiple sizes to suit various drill pipe diameters, the G Center Latch 18° Elevator meets API 8C specifications, delivering dependable performance, long service life, and safety assurance in oilfield applications.
At Arabian Drilling Tools, we focus on providing the G Center Latch 18° Drill Pipe Elevator, which combines precision, strength, and reliability for seamless drilling operations.

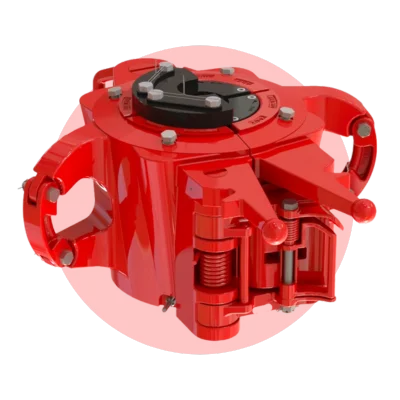

Slip Type Elevator – HYT
